Harold Hamilton founded Micro Control Company in 1972 as a manufacturer of test equipment for the electronics industry. The microprocessor-controlled test system produced in 1973 was the first in the industry. Today, the tradition continues with Micro Control Company’s high-power burn-in and test systems which are being shipped to customers throughout the world.
Along with high-power burn-in systems for logic and memory applications, Micro Control Company designs and builds burn-in boards and other burn-in accessories for use during reliability or production burn-in applications.

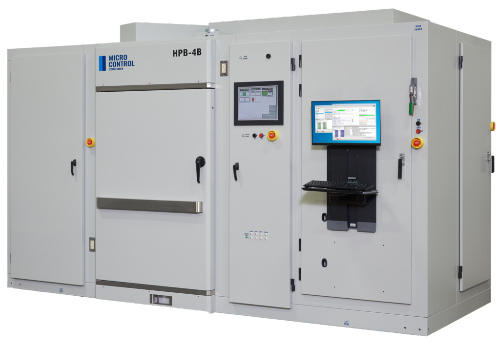

HPB-4B
High-Power devices have become an industry standard. The HPB-4B Burn-In with Test System meets the challenges created by wide variation in heat dissipation, and the diverse burn-in needs of high-power devices.
 | Individual temperature control for each device up to 600 W Test devices at a maximum temperature of 150°C with a liquid-cooled heat-sink per device Programmable clocks edges with 2-nanosecond edge resolution and 8 on-the-fly timing sets System capacity of 14 burn-in boards (112 devices) 12 vector formats per-pin per-cycle with memory testing extensions 19 programmable voltage regulators provide 2060 amps of device current per burn-in board High-speed clock programmable up to 800 MHz 128 I/O signals per board 64M vector memory, 8G scan
|

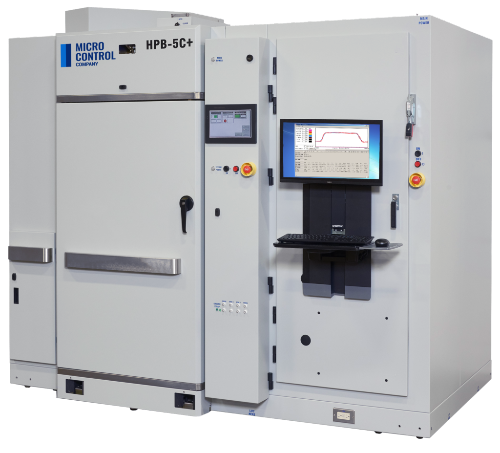

HPB-5C+
The HPB-5C+ Burn-In with Test System meets the challenges created by wide variation in heat dissipation, and the diverse burn-in needs high-power VLSI devices. The active thermal control feature provided by the HPB-5C+ ensures that the proper thermal stress is applied to each device during the burn-in cycle.
 | Individual temperature control for each device up to 150 W Variable oven overflow control Individual pattern zone per burn-in board slot 32M vector memory standard, 64M optional Tests devices at a temperature of up to 150°C Up to 800 MHz clock rate 128 digital I/O channels per burn-in board System capacity of 384 devices under test with individual temperature control per device 16 programmable voltage regulators with 1080 amps of device under test power per burn-in board (0-4 volts at up to 125 amps each) (0-6 volts at up to 10 amps each)
|

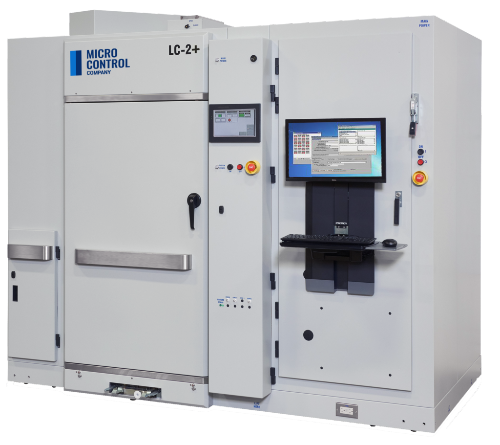

LC-2+
The LC-2+ is a sophisticated burn-in with test system which handles advanced requirements through its ability to perform dynamic burn-in with test. The LC-2+ is ideally suited for applications in engineering characterization, life testing, and production screening. The major function of the LC-2+ is to provide proper stressing temperature, voltage, and current condition to identify the functionality of the device during burn-in.
 | Large system capacity – 64 burn-in boards Individual temperature control up to 50 watts, compatible with many BIB sizes 128 or 256 digital I/O channels per burn-in board 5 individually programmable power supplies (up to 400 watts and 248 amps) per burn-in board Up to 150 Volt power supply outputs Up to 32 pattern and power zones Total flexibility up to 8M vector memory depth with scan capability per BIB
|

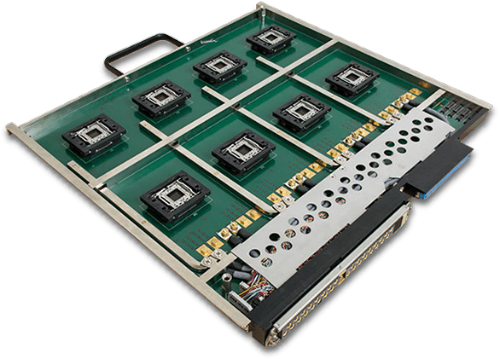

BURN-IN BOARDS
Micro Control Company designs and manufactures burn-in boards for use during burn-in and testing of a wide variety of electronic devices for many different types of burn-in systems. Each burn-in board is designed by engineers specializing in burn-in board design and can be formulated to meet the customer’s specific application requirements and specifications.
 | Dedicated and universal board designs 2 to 22+ layers of polymide 200°C maximum temperature Gold-plated connectors and socket lands All burn-in board styles available BGA, LGA, PGA, QFP, TSOP, micro-BGA, SOJ, PLCC, DIP, or custom-designed sockets -55°C to +150°C temperature range (up to 250°C with special board materials) Loader/unloader compatibility
|
