SFC–201 (Flux Cleaner, No Damage for Al material)
-Description
- SFC-201 is an exclusive Flux Cleaner for Flip Chip PKG that has an excellent cleaning effect for water soluble flux.
- One of its’ strong point is a “No damage for all metal”.
(Al/Cu/Sn etc.. especially , no damage for “Al” material)
-Advantages
- No damage for Al material (Bonding Pad)
- Excellent flux cleaning effect
- Small amount of occurring foam
- Weaker odor
- Extra green product (Satisfaction of RoHS, Halogen free)
- Easy maintenance for chemical

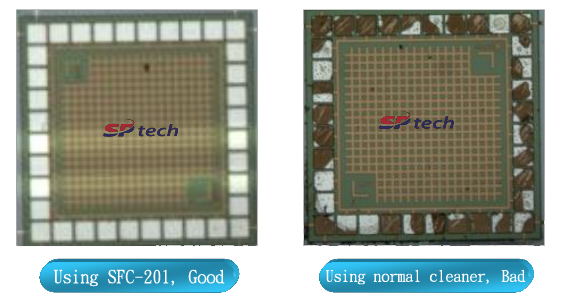

No Damage for Al material (Bonding Pad)

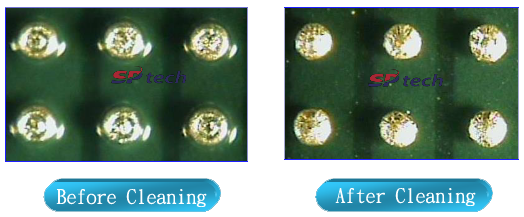

Excellent Flux Cleaning Effect
Extra Green Product
(Satisfaction RoHS & Halogen Free)
-Physical Properitis
- Physical State : Liquid
- Color : Clear colorless ~ Slight Yellow
- pH : 6.8 (at 1.5 brix)
- Ignition point : None
- Specific Gravity : 1.00
- Water Solubility : Complete (Cool ＆ hot )
-Storage
- Keeping at room temperature and avoiding the direct light.
-Operating Condition
- Temperature: 60 ~ 80℃
- Time : More than 3 min
- Concentration : 1 ~ 5 brix
- Other: Recommend to use it in the machine with a “Spray Nozzle System”
-Manufacture Information
- Product: SFC-201
- Maker: SP-TECH Co., Ltd
- Address: 38, Gwahaksaneop 1-ro, Oksan-myeon, Heungduk-gu, Cheongju-city, ChungBuk, South-Korea [361-911]
- Tel : +82-43-219-0114
- Fax: +82-43-218-0031
